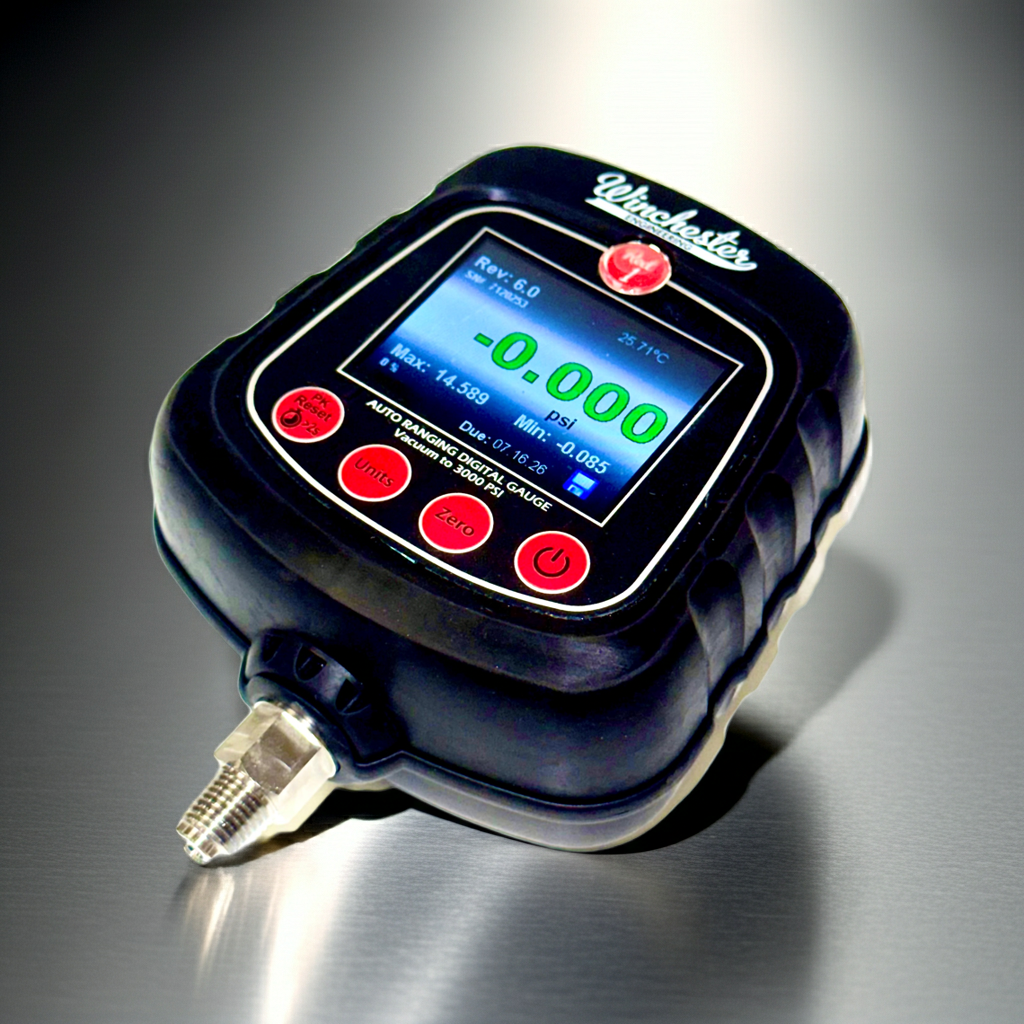

The newly redesigned RED 1 Digital Gauge from Winchester Engineering sets a new standard in pressure measurement. Building on our patented Auto Ranging Technology™ (A.R.T.), the RED 1 delivers unmatched accuracy, wide-ranging capability, and modern functionality, making it the ultimate tool for professionals who demand precise, reliable, and rugged instrumentation.
Download Data Sheet & ManualThe newly redesigned RED 1 Digital Gauge from Winchester Engineering sets a new standard in pressure measurement. Building on our patented Auto Ranging Technology™ (A.R.T.), the RED 1 delivers unmatched accuracy, wide-ranging capability, and modern functionality, making it the ultimate tool for professionals who demand precise, reliable, and rugged instrumentation.
- Performance Highlights
- Accuracy: ±0.05% of Reading + ±0.01 % of full scale (FS) + ±1 digit
- Resolution: up to 0.001
- Pressure Range: Absolute Vacuum to 3000 PSI
Up to 24 hours of continuous operation on a single charge.
The RED 1 maintains exceptional accuracy across its entire range (Absolute vacuum to 3000 psi) without dead zones or drop-offs. With A.R.T., there’s no need to switch between multiple gauges or modules. One device. Complete range.
Benefits of A.R.T: No over ranging and blowing the gauge sensor. Always have the right range gauge while out in the field, no loss of time swapping them on and off. Calibration cost for NIST certification is cut into a fraction.
Key Features
Auto Ranging Technology™ (A.R.T.)
- Automatically adapts to any pressure within its range without losing precision — eliminating the need for multiple instruments.
High-Resolution Color Touchscreen
- User-friendly, vibrant display enables quick navigation and deep customization.
- SMART Display ensures visibility in any lighting condition.
- Touchscreen complements traditional controls for a hybrid experience.
Classic 4-Button Interface
- Prefer physical buttons? The RED 1 keeps the familiar 4-button layout, ideal for use in extreme conditions where touchscreens may be limited (e.g., extreme temperatures, wet, greasy fingers or gloved environments).
Rechargeable Battery
- Charges via a standard phone charger
- Battery level indicator ensures you're never caught off guard. Auto Shutoff preserves battery life.
Rugged, Shock-Resistant Design
- Durable rubber housing protects against drops
- Anti-static design helps prevent accidental sparks
- Built to thrive in demanding environments
Intrinsically Safe Class 1, Div 1
Data Logging Made Simple
- Insert memory card and download to your computer with a USB. The data is put into industry-standard CSV files that can be opened with any text editor or imported into Excel for plotting — user-friendly and universal to work with. No annual software fees.
Flexible Mounting & Accessories
- Connection: ¼" NPTM with tapered thread for impact protection
- Optional Self-Stowing Hook for hands-free operation
- Optional Temperature Probe for added functionality
Smart Calibration Features
- Recertification Reminder with 10-year onboard memory
- Helps maintain compliance and calibration accuracy with minimal oversight
User-Updatable Firmware
- Stay up to date with the latest updates without the need for factory reprogramming.
User-Selectable Units
- Enable or disable any of the pressure units to avoid confusion.
Max/Min Hold
- Max and Min values are automatically tracked and displayed.
Enhanced Digital Filtering for Less Measurement Noise
